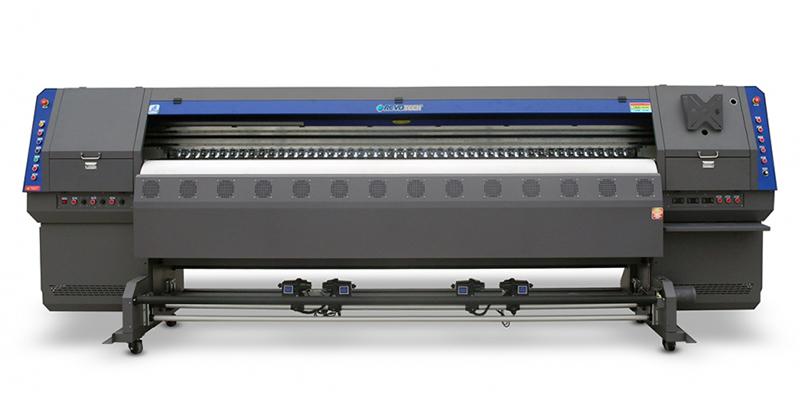

Print head: KONICA 1024I 6PL
Max resolution: 1440dpi
Max printing speed: 200 sqm/hr
Max printing width: 3.2m (126inch)
1. The eco solvent printing commercial printer is equipped with an automatic media feeding and collecting system for optimal efficiency and double vinyl feeding and collecting systems.
2. Positive pressure cleaning is used in the print head cleaning system. The anti-clogging flash function can eliminate blockages and the print head sprays a small amount of ink at regular intervals in order to keep the nozzle wet, wash the blocks away, and allow for a fluid release of ink when printing.
3. A print head heating system is installed to prevent ink from breaking down by maintaining a stable temperature and keeping the ink in an optimal state for stable working conditions during the printing process.
4. The design of the fabric pinch rollers is denser than common printers with uniform pressure and stronger friction force, so cloth can be loaded into the machine with less outside interference.
5. The printer is equipped with a large sectional infrared drying device, in which the ink on cloth can dries immediately upon application during the high-speed printing process.
6. High-accuracy mute guide and high-accuracy AC servo motor are applied in the printer to maintain the stable carriage operation and qualified figures during the printing process.
7. The environment-friendly eco solvent ink is free from pollutants and odors while providing prints with bright and long lasting colors.
1. The M-330X 1024i 6PL Eco Solvent Printing Commercial Printer is suitable for processers requiring large printing yields, high accuracy and environmentally friendly operation.
2. Paper, advertisement light box, PVC, mesh, gummed paper sheet can be printed with the printer.
3. The advertisements printed with the printer can be displayed in restaurants, stores, gyms, airports, underground stations, high-speed rail stations, highway ad billboards and bus advertisements.Parameters:
|Print Head||KONICA 1024I 6PL|
|Number of Print Head||4||8|
|Maximum Print Width||3.2m (126inch)|
|Print Speed||Draft Model||95 sqm/hr||200 sqm/hr|
|Standard Model||65 sqm/hr||135 sqm/hr|
|Ultra Model||45 sqm/hr||95 sqm/hr|
|Maximum Print Quality||1440dpi|
|Image Format||Bitmap, TIFF, Quark Xpress, JPGEG, AI, EPS, PDF|
|Color Management||Superior ICC Profile|
|Work Flow||RIP and Print simultaneously/Print after RIP|
|Ink Type||Eco Solvent Ink|
|Software||Photo Print, Revotech Edition|
|Work Station||Windows 10 or Windows 7|
Our company is a leading eco solvent printing wide format printer manufacturer and supplier in China, we are offering printing equipment such industrial printers, commercial printers, these printing machines are widely used in poster printing and banner printing, and can print different printing materials like paper, textile, and we have rich experience of manufacturing large format printers, we are confident to offer any client good quality digital printing machines with reasonable price.
