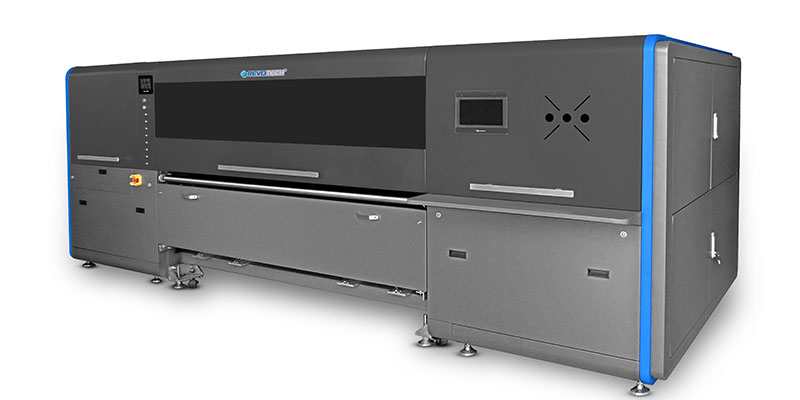

The RTTP-200A digital belt textile printer is an industrial grade digital belt textile printer that is known for its highly accurate and fast performance.
Print head: KONICA 1024I 6PL
Max printing speed: 400 sqm/hr
Max printing width: 2000mm
Max fabric thickness: 10mm
1. The Japanese Konica industrial-strength textile print head is designed to carry out large scale, continuous printing.
2. The RTTP-200A Digital Belt Textile Printer is equipped with a heating system, which allows the print head to work under any circumstance.
3. The collision prevention system on the printer protects the print head against the printing materials.
4. The infrared testing system will monitor the applique level in real time in order to protect the print head.
5. The flexible pressure roller assembly ensures the flatness of the applique during the printing process.
6. The automatic ink absorption system directly cleans and preserves the print head in such a way that is safe and convenient.
7. The belt is automatically cleaned.
8. The negative pressure ink supply system will ensure continuous ink release during long term printing processes.
The RTTP-200A Digital Belt Textile Printer is widely used in domestic digital fabric printing, personalized fashion printing, underwear printing, gift printing, professional proofing and other areas.
|Technology||Drop On Demand Piezo Inkjet Technology|
|Print Head & Standard||Konica 1024I(6PL)×16pcs/8pcs/4pcs|
|Ink Type||Pigment Ink||Yellow, Cyan, Magenta, Black|
|Max Printing Width||2000mm|
|Max Fabric Thickness||10mm|
|Printing Speed||Draft Model||400 m2/h|
|Standard Model||290 m2/h|
|Ultra Model||180 m2/h|
|Operating Environment||Mechanical Operating Condition||15~30 ℃ 40~70% RH|
|Inkjet Supplement Control Condition||20~28 ℃ 40~70% RH|
|Maintenance of Print Head||Auto Maintenance System|
|Ink Supply System||Motor-driven Pump Supply System|
|Fabric Feeding System||Annular belt fabric feeding system|
|Belt Cleaning||Continual Water Brush Roller Cleaning Mode Output of Supplying Water 7~8 L/min|
|Compressed Air Using Standard||Above 5 kgf/cm³ Above 1.5 hPa|
|Dimensions||W 3450 × L 4600 × H 2250 (mm)|
|Weight||Approx. 2500 KG|
|Power Supply||Three-phase 380 V|
|Mesh Belt Width||2250 mm|
|Temperature Control System||Solid Relay Control|
|Electric Heating Power||50 KW, 380 V|
|Circulating Fan Power||1.5 KW|
|Temperature Range||Indoor┄200 ℃|
|Dimensions||W 2720 × L 5500 × H 1550 (mm)|
Our company is a leading digital belt textile printer manufacturer and supplier in China, we are offering printing equipment such industrial printers, commercial printers, these printing machines are widely used in poster printing and banner printing, and can print different printing materials like paper, textile, and we have rich experience of manufacturing large format printers, we are confident to offer any client good quality digital printing machines with reasonable price.
