Print head: KONICA 512 35PL
Max resolution: 720dpi
Max printing speed: 124 sqm/hr
Max printing width: 3.2m (126inch)

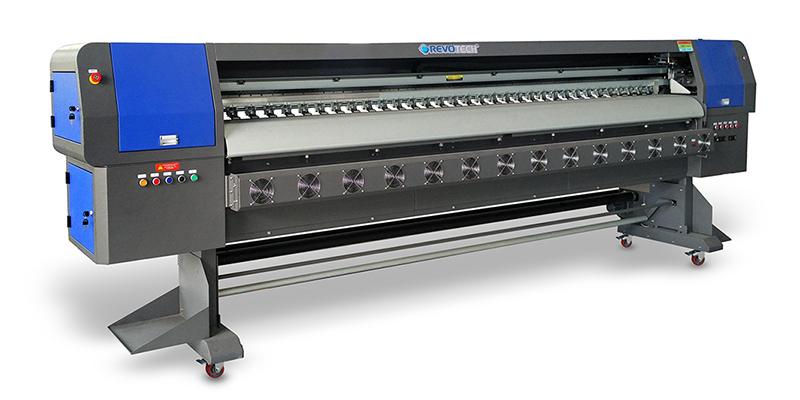

1. The NS-330X 512 35PL solvent printing industrial printer is equipped with a high quality Japanese KONICA 512 industrial print head.
2. The humidity control device is installed to protect the print head and avoid constant maintenance.
3. The solvent printing industrial printer is equipped with an automatic media feeding system.
4. Positive pressure cleaning is used in the print head cleaning system. The anti-clogging flash function can eliminate blockages and the print head sprays a small amount of ink at regular intervals in order to keep the nozzle wet, wash the blocks away, and allow for a fluid release of ink when printing.
5. The printer has different printing models to choose; 8 print heads can be equipped at most and every color can occupy 2 print heads, which improves the printing efficiency at 124 m2/h in regular production models.
6. The printer is equipped with a high-accuracy AC servo motor, which helps the carriage move with precision during the printing process.
1. The NS-330X 512 35PL solvent printing industrial printer is suitable for processers requiring large printing yields.
2. Paper, advertisement light box, PVC, mesh, gummed paper sheet can be printed with the printer.
3. The advertisements printed with the printer can be displayed in restaurants, stores, gyms, airports, underground stations, high-speed rail stations, highway ad billboards and bus advertisements.Parameters:
|Print Head||KONICA 512 35PL|
|Number of Print Head||4||8|
|Maximum Print Width||3.2m(126inch)|
|Print Speed||Draft Model||60 sqm/hr||124 sqm/hr|
|Standard Model||47 sqm/hr||95 sqm/hr|
|Ultra Model||30sqm/hr||60 sqm/hr|
|Maximum Print Quality||720 dpi|
|Image Format||Bitmap, TIFF, Quark Xpress, JPGEG, AI, EPS, PDF|
|Color Management||Superior ICC Profile|
|Work Flow||RIP and Print simultaneously/Print after RIP|
|Ink Type||Solvent Based Ink|
|Software||Photo Print , Revotech Edition|
Our company is a leading solvent printer manufacturer and supplier in China, we are offering printing equipment such industrial printers, commercial printers, these printing machines are widely used in poster printing and banner printing, and can print different printing materials like paper, textile, and we have rich experience of manufacturing large format printers, we are confident to offer any client good quality digital printing machines with reasonable price.
