Print head: KONICA 3688H
Color: CMYK, LC, LM, W
Max resolution: 1440dpi
Max printing speed: 14sqm/hr
Max printing size: 2.5m (98inch) × 1.3m (51inch)
1. Positive pressure cleaning is used in the print head cleaning system to keep the print head working in optimal condition. The anti-clogging flash function can resist blocking and the print head sprays a small amount of ink at regular intervals to keep the nozzle wet, wash the blocks away, and allow for a more fluid release of ink.

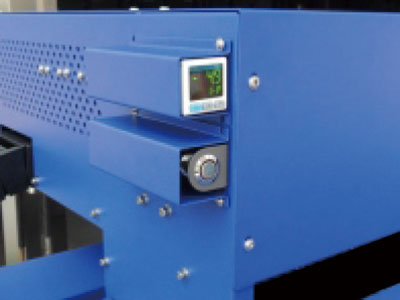

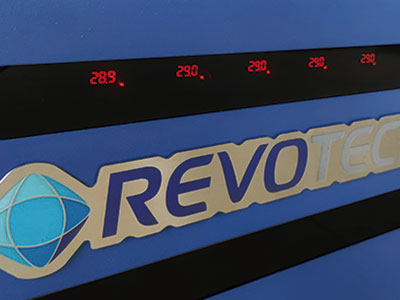

2. A print head heating system is installed to prevent ink from breaking down. By keeping the temperature stable, the ink is kept in a stable working condition during the printing process.

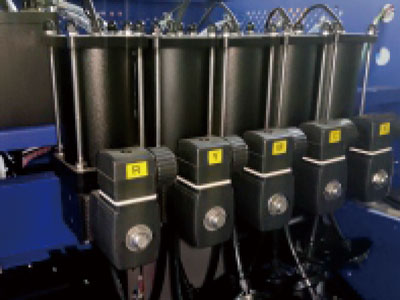

3. The negative pressure ink supply system can keep the release of ink continuous during long-time printing process.

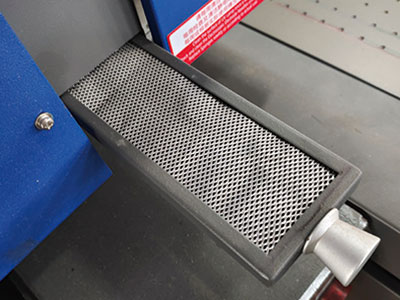

4. The automatic ink absorption system is able to clean and preserve the print head directly that minimizes the need for maintenance.
5. The printer supports high-precision 3D printing.

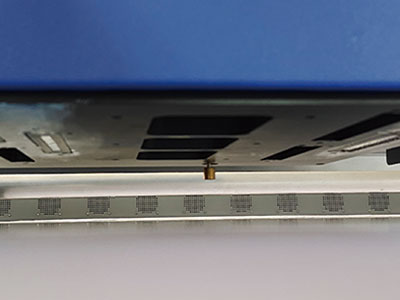

6. The ion pulse rod removes static electricity on the material surface and improves overall printing quality.
7. To reveal different printing techniques like white-CMYK-white and white-CMKY-top coating, the print head and ink are selected according to practical demands.

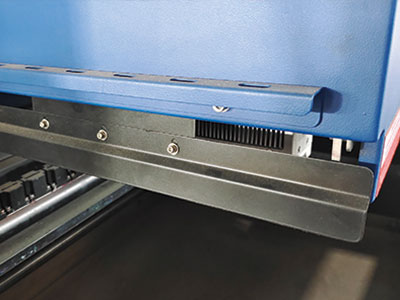

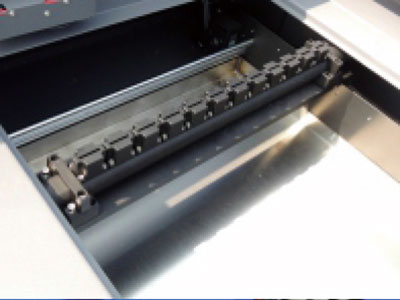

8. The carriage protection system is equipped to prevent damage to the print head from printing materials.

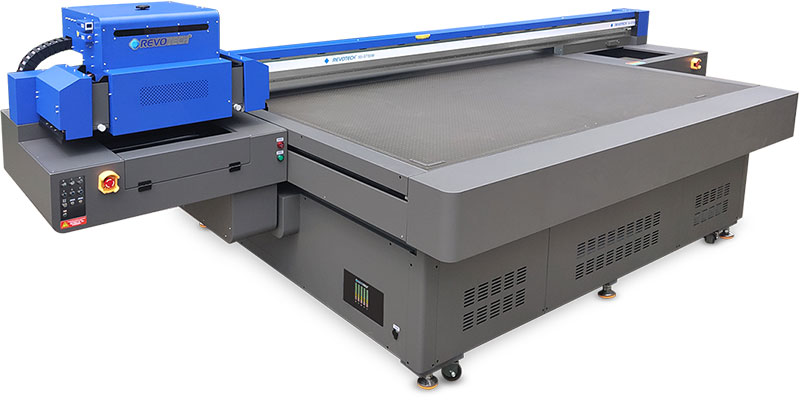

1. UV-250XF wide format UV flatbed commercial printer is used for wide format printing jobs.
2. The printer is widely used in electronics printing, vinyl banner printing, digital printing, wallpaper printing, art digital printing, gift printing, package printing, plastic toy printing, paper card printing, stationery printing, wood printing, leather printing and so on.
3. Different kinds of sheet materials can be printed with the printer.
4. The printings of the printer are usually used on lamps, decorations, banners, toys, stationaries, paper cards, art works and so on.Parameters:
|Print Head||KONICA 3688H|
|Number of Print Head||8|
|Maximum Print Size||2.5m (98inch)*1.3m (51inch)|
|Print Speed||Draft Model||14sqm/hr|
|Maximum Print Quality||1440dpi|
|Image Format||TIFF, JPEG, Postscript 3, EPS and PDF|
|Color Management||Superior ICC Profile|
|Work Flow||RIP and Print simultaneously/Print after RIP|
|Ink Type||UV Curing Ink|
|Software||Photo Print, REVOTECH Edition|
|Work Station||Windows 10 or Windows 7|
|Operating Environment||(Temperature) 20-28℃|
Our company is a leading wide format UV flatbed printer manufacturer and supplier in China, we are offering printing equipment such industrial printers, commercial printers, these printing machines are widely used in poster printing and banner printing, and can print different printing materials like paper, textile, and we have rich experience of manufacturing large format printers, we are confident to offer any client good quality digital printing machines with reasonable price.
