Print head: KONICA 512I 13PL
Max resolution: 1440dpi
Max printing speed: 100 sqm/hr
Max printing width: 1.9m (75inch)

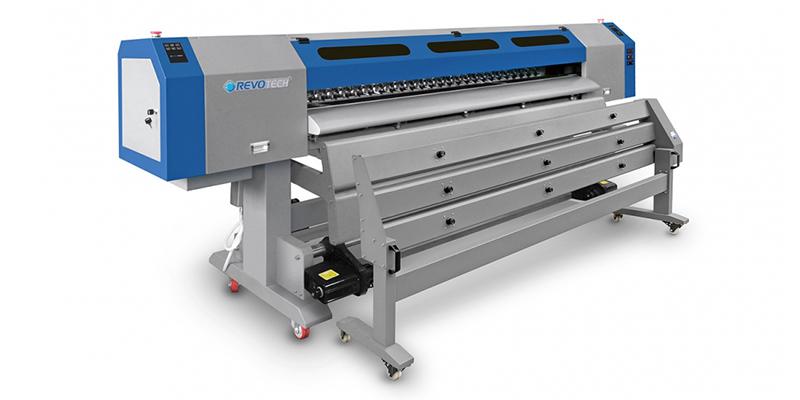

1. The TF-190XP water based pigment commercial printing machine is equipped with an automatic media feeding and collecting system.
2. A positive pressure pump cleaning is used in the print head cleaning system, with the clog resistant flash function used to protect and resist blockage formation. This means the print head will spray a small amount of ink at regular intervals in order to keep the nozzle wet, and wash away any blockages to allow for a smooth ink release.
3. The print head heating system is designed to prevent the ink from drying out, then breaking or cracking. It does so by keeping the temperature stable, and keeping ink in the best possible state within a stable working condition throughout the printing process.
4. A siphon ink supply system ensures the ink will be smoothly released, and provides a qualified output, even under high printing speeds.
5. The fabric pinch roller arrangement is denser than other printers, and feature a uniform pressure and stronger friction force, so that cloth will be pushed into the machine with less outside interference.
6. The pre-drying equipment is easy to operate and separate, with a flexible distance and adjustable power control.
7. The highly accurate AC servo motor is used for a stable carriage operation during printing processes at high speeds.
8. The water based pigment in the printer is environmentally friendly and odor free.
1. The TF-190XP water based pigment commercial printing machine is suitable for small processers that require a small format and environmentally friendly performance.
2. Different materials like cotton, linen, silk, dacron and nylon can be printed on using this printer.
3. The printing can be used for different industry applications, including fabric, advertisements, decorations and more.Parameters:
|Print Head||KONICA 512I 13PL|
|Number of Print Head||4||8|
|Maximum Print Width||1.9m(75inch)|
|Print Speed||Draft Model||50 sqm/hr||100 sqm/hr|
|Standard Model||38 sqm/hr||75 sqm/hr|
|Ultra Model||28 sqm/hr||55 sqm/hr|
|Maximum Print Quality||1440dpi|
|Image Format||Bitmap, TIFF, Quark Xpress, JPGEG, AI, EPS, PDF|
|Color Management||Superior ICC Profile|
|Work Flow||RIP and Print simultaneously/Print after RIP|
|Ink Type||Pigment Ink|
|Software||Photo Print, Revotech Edition|
|Work Station||Windows 10 or Windows 7|
Our company is a leading water based pigment printing machine manufacturer and supplier in China, we are offering printing equipment such industrial printers, commercial printers, these printing machines are widely used in poster printing and banner printing, and can print different printing materials like paper, textile, and we have rich experience of manufacturing large format printers, we are confident to offer any client good quality digital printing machines with reasonable price.
