Basic information:
Print head: KONICA 6988H
Color: CMYK, LC, LM
Max resolution: 1440dpi
Max printing speed: 50 ㎡/hr
Max printing width: 3.2m (126inch)

Inquiry

Product features:

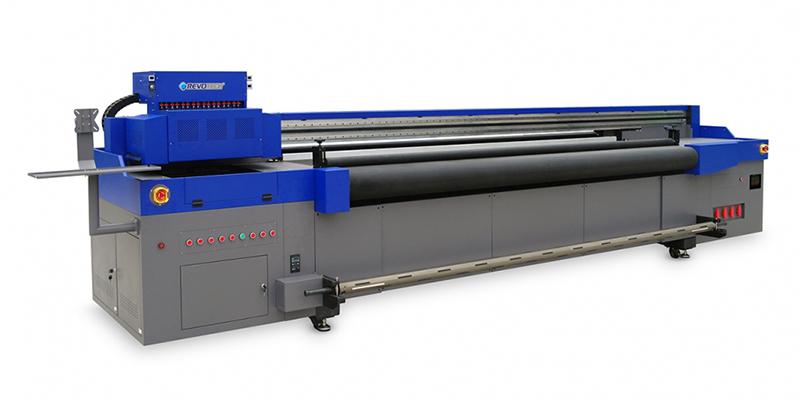

1. The UV commercial printer is equipped with a high efficiency automatic media feeding and collecting system.

2. Positive pressure cleaning is used in the print head cleaning system. The anti-clogging flash function can eliminate blockages and the print head sprays a small amount of ink at regular intervals in order to keep the nozzle wet, wash the blocks away, and allow for a fluid release of ink when printing.

3. A print head heating system is installed to prevent ink from breaking down by keeping the temperature stable and keeping the ink in an optimal state for stability during the printing process.

4. The negative pressure ink supply system can keep the release of ink continuous during long-time printing process.

5. The automatic ink absorption system is able to clean and preserve the print head directly that minimizes the need for maintenance.

6. The printer can check if the material is wrapped automatically to protect the print head from the wrapping material during printing.

7. The belt can automatically correct its direction to prevent slanting and ultimately improper printing.

8. The material guide is used to set the optimal starting position.

9. The carriage is able to adjust its height to fit different thickness printing materials.

10. The printer is equipped with a high-accuracy duel-rail AC servo motor to maintain carriage stability during operation.

11. The ion pulse plate removes static electricity on the material surface and improves overall printing quality.

12. To reveal different printing techniques like white-CMYK-white and white-CMKY-top coating, the print head and ink are selected according to practical demands.

13. The carriage protection system is equipped to prevent damage to the print head from printing materials.

Application:
1. The Revotech UV commercial printer is widely used in electronics printing, vinyl banner printing, digital printing, wallpaper printing, art digital printing, gift printing, package printing, plastic toy printing, paper card printing, stationery printing, wood printing, leather printing and so on.

2. Different kinds of coiled materials or sheet materials are available for use in the UV Commercial Printer.

3. The printings of the printer are usually used on lamps, decorations, banners, toys, stationaries, paper cards, art works and so on.
